EXCLUSIVE: UL Classified "Dynamic Deflection" Head of Wall
with PAC International RSIC-1

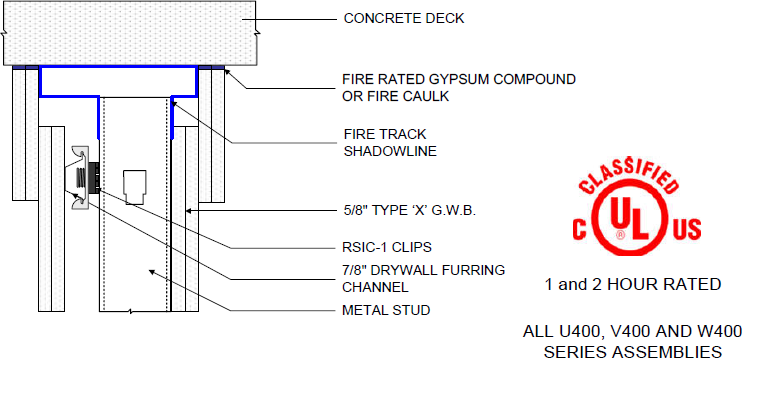

RSIC-1 Head of Wall Fire Track Shadowline detail. The RSIC-1 is approved for use in UL Fire resistive Design UL HW-D-0060 and UL HW-D-1011 one and two hour fire rated head of wall designs. These head of wall designs can be used in all U400, V400 and W400 series steel frame wall designs where the RSIC-1 clip is published in the Fire Resistive Design.


1 HOUR RSIC-1 Head of wall with Firetrack Shadowline Up to 2" deflection



1 and 2 HOUR RSIC-1 Head of wall with Firetrack Shadowline Up to 2" deflection
